DXF & STEP Import and Analysis
Import DXF or STEP files and let Workshop Assistant automatically extract dimensions, holes, bends, and perimeters — ready for costing.
DXF Import
Import DXF files with manual material thickness input. Workshop Assistant automatically analyzes the geometry — outline, holes, and bend lines — ready for editing in the Geometry Editor.
STEP Analysis

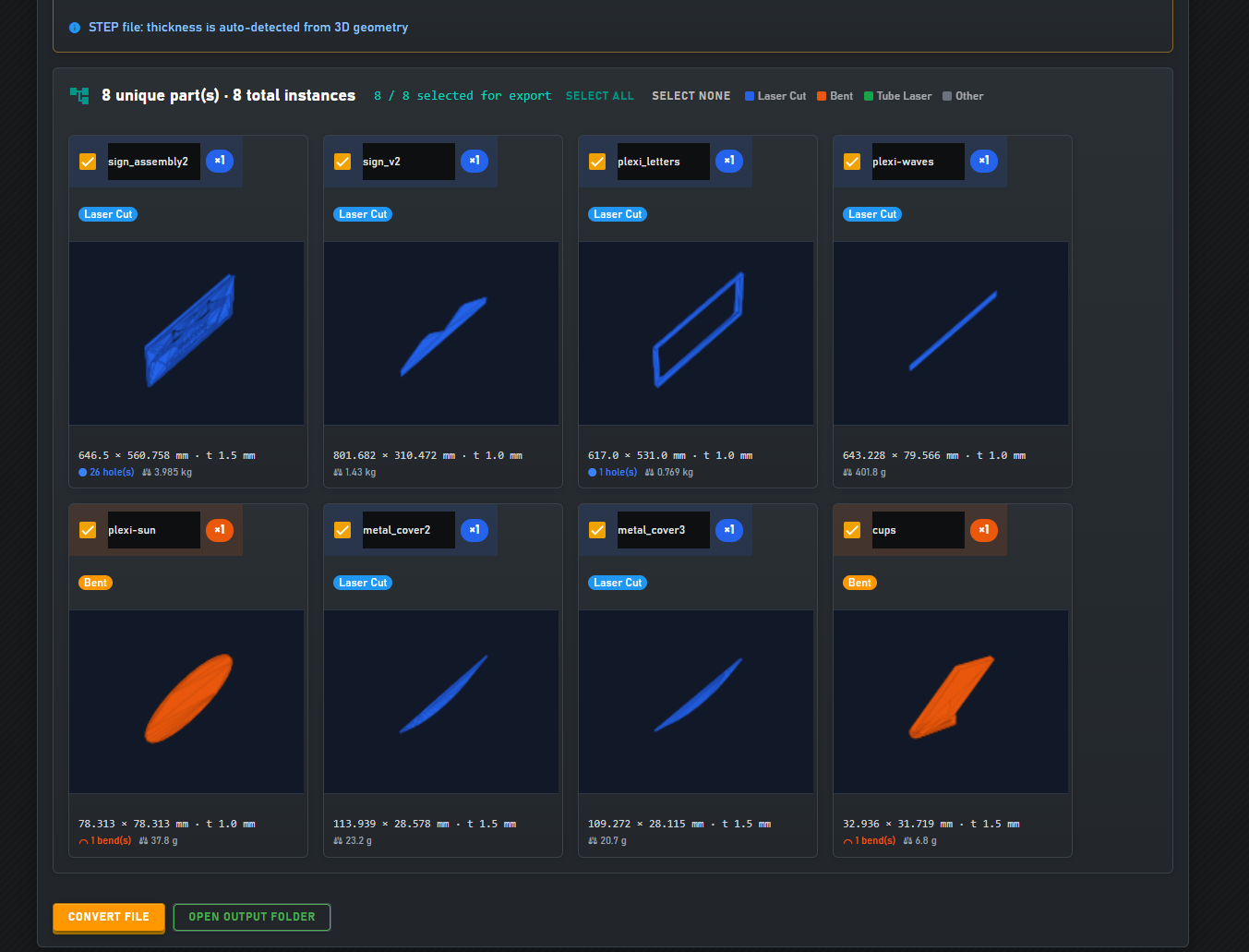

Import STEP files with automatic thickness detection straight from the model itself. Ideal for assemblies where you don't want to enter thickness manually for every part.
What's extracted automatically
Geometry Analysis
Dimensions, holes, bends, and perimeter are extracted automatically from every imported file.
Geometry Editor
Visually classify contours, features, and bend lines directly on the geometry with a click.
Automatic Hole Detection
Holes and circles are detected automatically, along with curved edges and chamfers.
Batch Processing
Import multiple files at once with material selection during import.
FAQ
What's the difference between DXF and STEP import?+
DXF requires manual material thickness input, while STEP auto-detects thickness from the 3D model.
Does it auto-detect bends and holes?+
Yes, for both DXF and STEP files, with manual correction available in the Geometry Editor.
Can I import multiple files at once?+
Yes, batch processing lets you import multiple DXF or STEP files in one step.
Try CAD Import Yourself
Download the free trial and import your own DXF/STEP files today.
Download Free Trial
